Assessing Stress Conditions and Impact Velocities in Fluidized Bed Opposed Jet Mills (Open Access)
Alexander Strobel, Benedikt Köninger, Stefan Romeis, Florian Schott, Karl-Ernst Wirth, Wolfgang Peukert*
Keywords: Fluidized bed opposed jet mill; Single particle probes; Finite element modeling; Stress number distribution; Relative velocity distribution
DOI: 10.1016/j.partic.2020.02.006
文章概述
本文利用金属铝的延展性特点，结合有限元计算及图像分析，巧妙地将铝颗粒表面的形变与颗粒间相对速度和碰撞频率相关联。通过对铝颗粒表面形变的研究，定量评估流化床对冲式气流磨中颗粒间的撞击速度和应力分布。
亮点导读

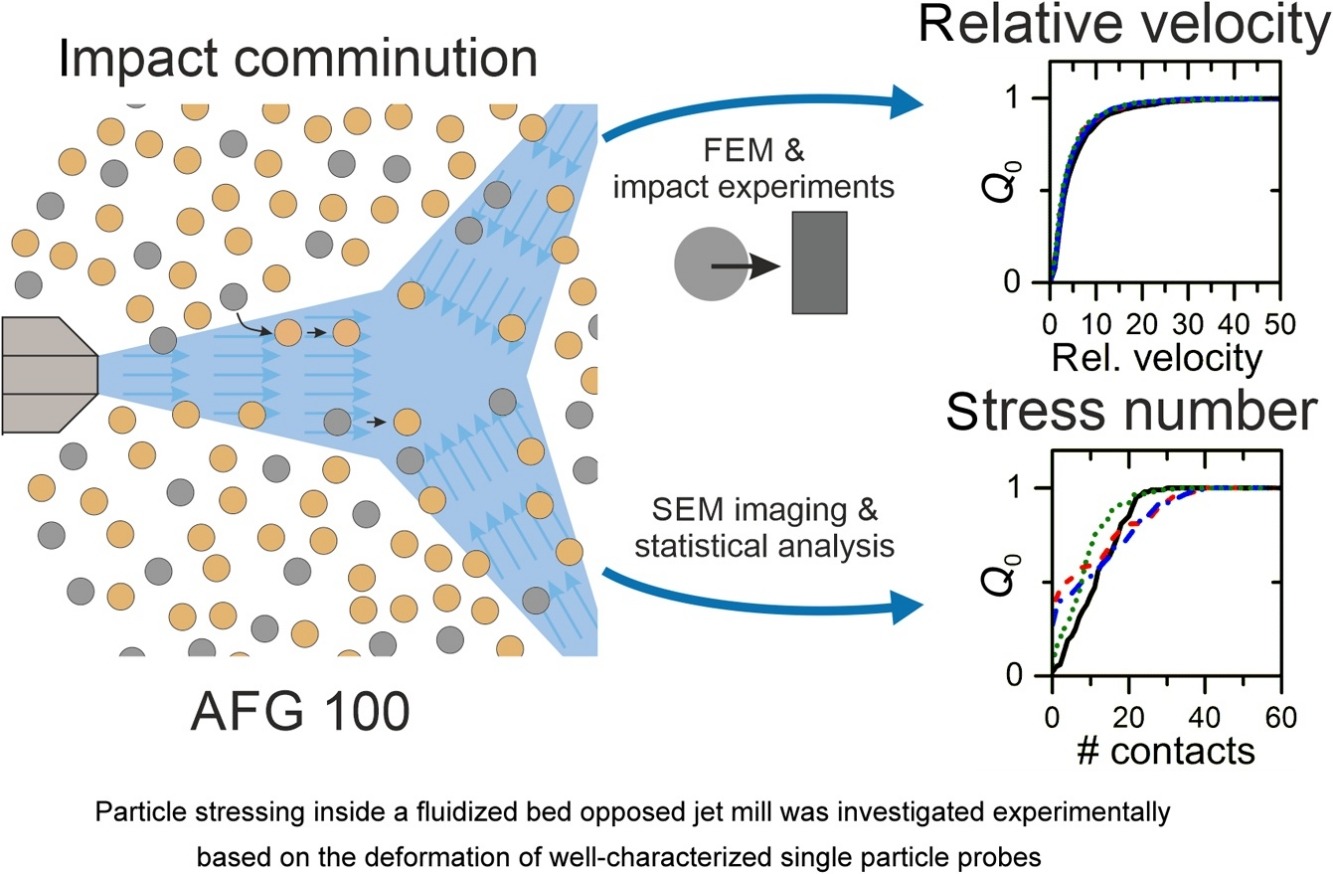

※ Characterization of fluidized bed opposed jet mills by single particle probes.
※ Determination of relative particle velocities and effective stress numbers.
※ Proposed approach validated by particle image velocimetry during secondary gas injection into a fluidized bed reactor.
内容简介
流化床对冲式气流磨因其冲击强度大，磨损小，对产品无污染等特点，被广泛用于高纯度、热敏产品如活性医药原料药、营养素、颜料染料、磨料陶瓷等的生产和加工。该气流磨的粉碎机理是从喷嘴高速喷出的气流束在磨内形成对心逆喷射流场，磨内固体颗粒在压差作用下流化、加速并在射流的交汇点产生剧烈碰撞、摩擦而粉碎。因此，其性能主要受颗粒的运动情况、撞击速度及应力分布影响，但迄今为止相关定性研究少有报道。
德国埃尔兰根-纽伦堡大学颗粒技术研究所Wolfgang Peukert教授团队对流化床对冲式气流磨的应力条件和冲击速度进行了深入的研究，文章中提出了一种独特的方法，即将混有少量金属铝颗粒的玻璃微球加入磨床，在床内的运动过程中，两种颗粒的相互作用将使铝颗粒表面发生形变，产生凹痕，凹痕的大小及数量与颗粒间的相对速度、碰撞频率以及应力分布密切相关。这种关系可以用有限元方法对单个探针颗粒的应力应变行为计算得出并结合SEM中的纳米压痕及粒子图像测速仪进行验证。通过这种方法，作者首次根据过程参数定量确定了磨机内应力分布情况，同时，进一步对不同的固体浓度和气压条件下的应力情况进行了测试。
上述方法适用于对各类磨机中的过程进行研究，为磨机的机理研究和定量放大开辟了新途径。
